MATEC 40HV I 50HV I 70HV - Standard equipment – machines and options

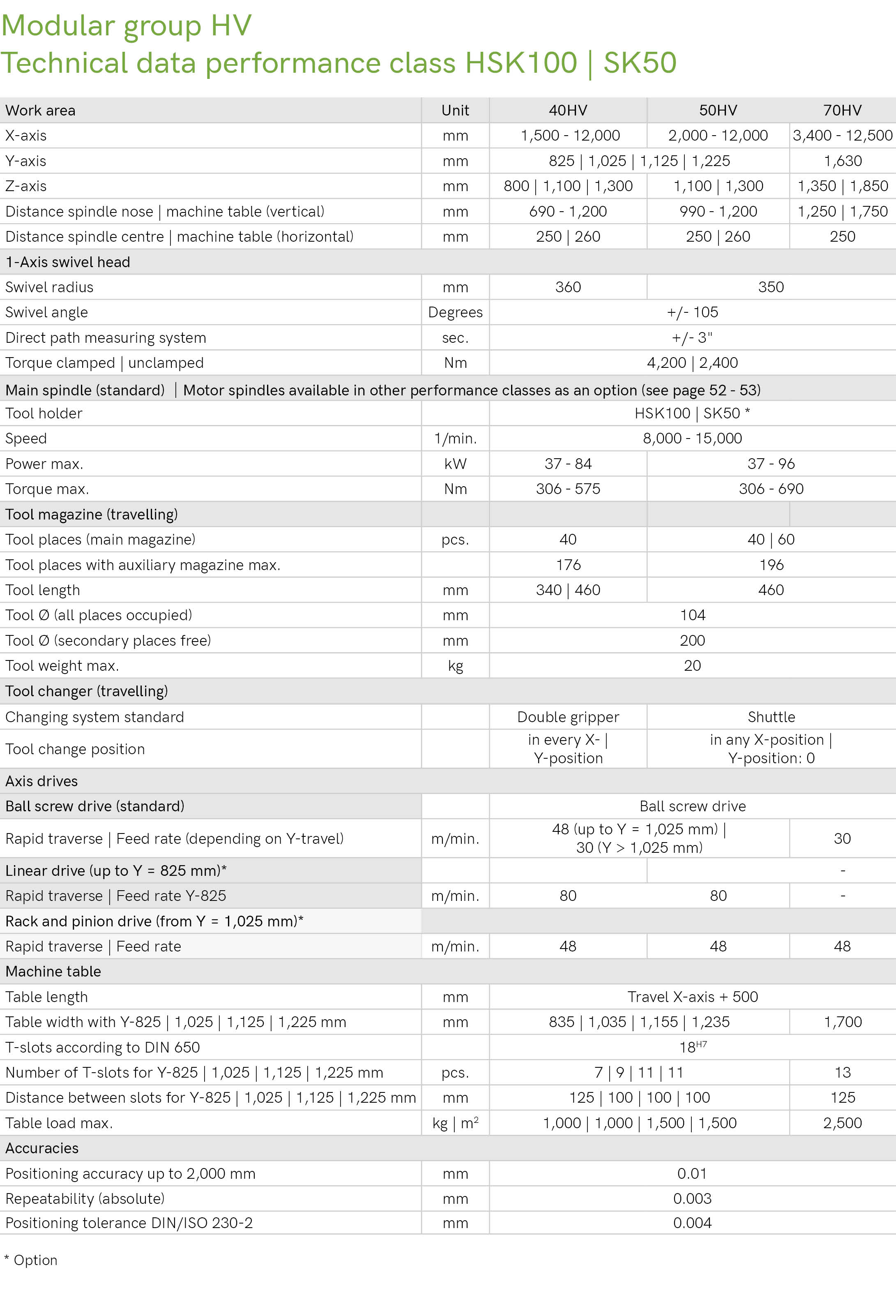

Performance class HSK100 | SK50

Standard equipment

  • 1-Axis CNC swivel head, infinitely variable
  • CNC control Heidenhain TNC 640
  • Speed: 8,000 1/min
  • Motor spindle: Drive power max. 37 kW
  • Torque: max. 306 Nm
  • Tool holder HSK100
  • 40HV tool change with double gripper, 40 tool places
  • 50HV and 70HV tool change with shuttle, 60 tool places
  • Axis drives with ball screw drive
  • Roller linear guides in all axes
  • Direct path measuring systems
  • Standard machine table with T-slots
  • Full work area enclosure with roof
  • Chip conveyor
  • Coolant unit

Options for the basic machine

Swivel head

  • Dynamic CNC swivel head with direct drive

Motor spindle

  • Higher power motor spindle
    ― Speed range: 10,000 to 15,000 1/min
    ― Power: up to max. 96 kW
    ― Torque: up to max. 690 Nm
  • Tool holder SK50

Drive system

  • X-axis with linear drive
  • X-axis with rack and pinion drive

Machine table assembly group

  • Customised machine table assembly group
  • Integrated or top-mounted rotary tables, position freely selectable
  • CNC rotary tables for positioning and turning
  • Other table heights
  • Adaptation of T-slots to customer's existing fixtures and clamping systems
  • Zero-point clamping systems according to customer requirements
  • Swivelling machine tables according to the customer's requirement profile.
  • Tool changing system with shuttle from Y-axis 825 mm and Z-axis 1,100 mm
  • Partition wall for pendulum machining, fixed or variable position
  • Automatic work area doors

Tool magazines / capacity extensions

  • Additional magazines, pick-up magazines

Automation and special equipment

  • Mill turn with automatic balancing in the machine
  • Sawing units, multi-spindle and angle heads
  • Deep hole drilling
  • Workpiece machining from bar (bar feeder)
  • Loading automation, pallet change
  • Friction stir welding (FSW)
