MATEC 30SD - Two work areas. Loading and unloading during machining

3-axis double-spindle machining centre with swivel table

Reduction of the piece time by 50%
Tool change directly above the workpiece
Pallet change in approx. 4 seconds
Ideal concept for manual and automatic loading

Additional rotary tables or swivel bridges with counter
bearing enable multi-sided machining.

Rotary distributors for clamping hydraulics, pneumatics
or vacuum integrated in the swivel table enable complex
fixtures with multiple clamping or different clamping

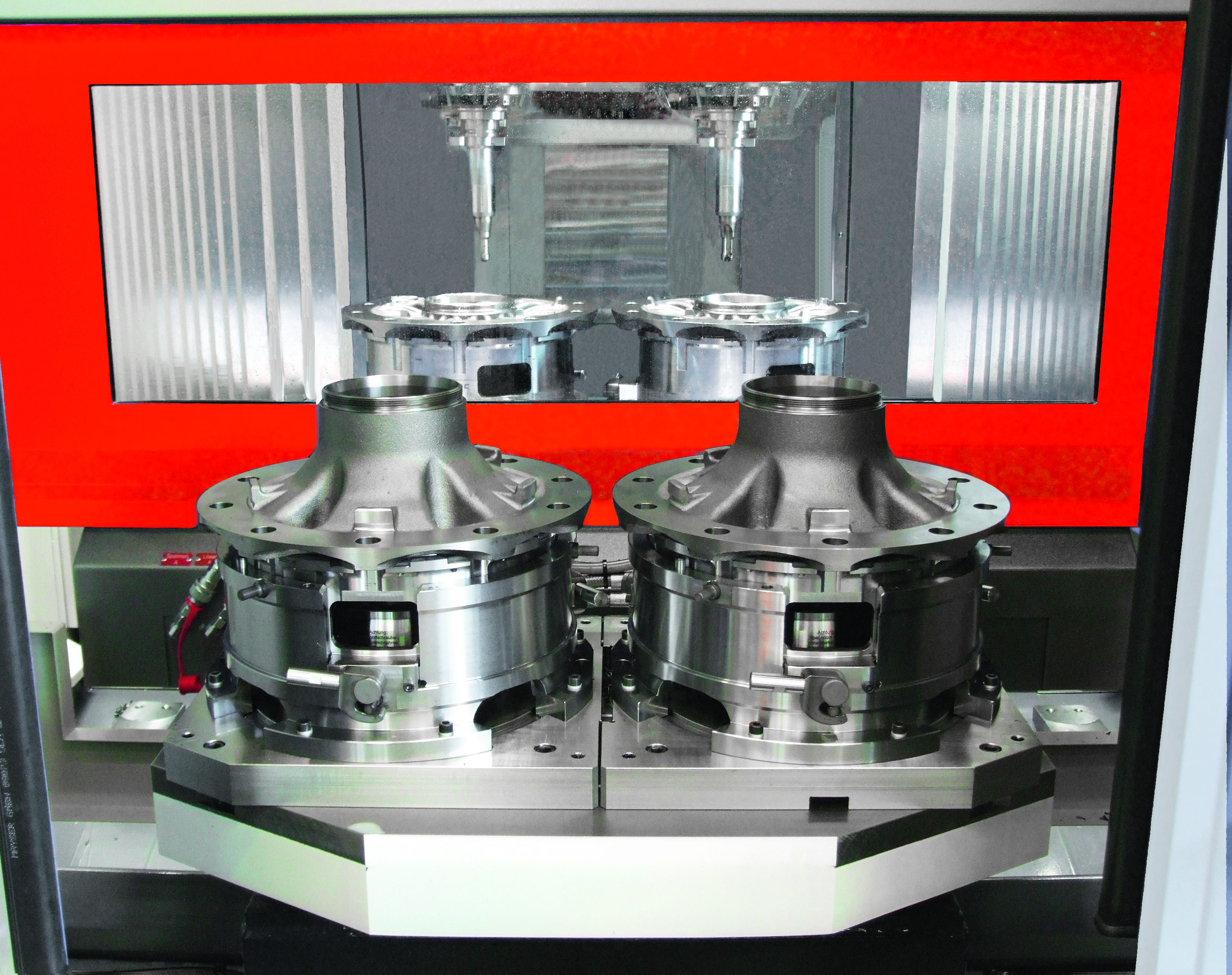

Work area 1: Loading station. Hydraulically operated
double clamping device for automation

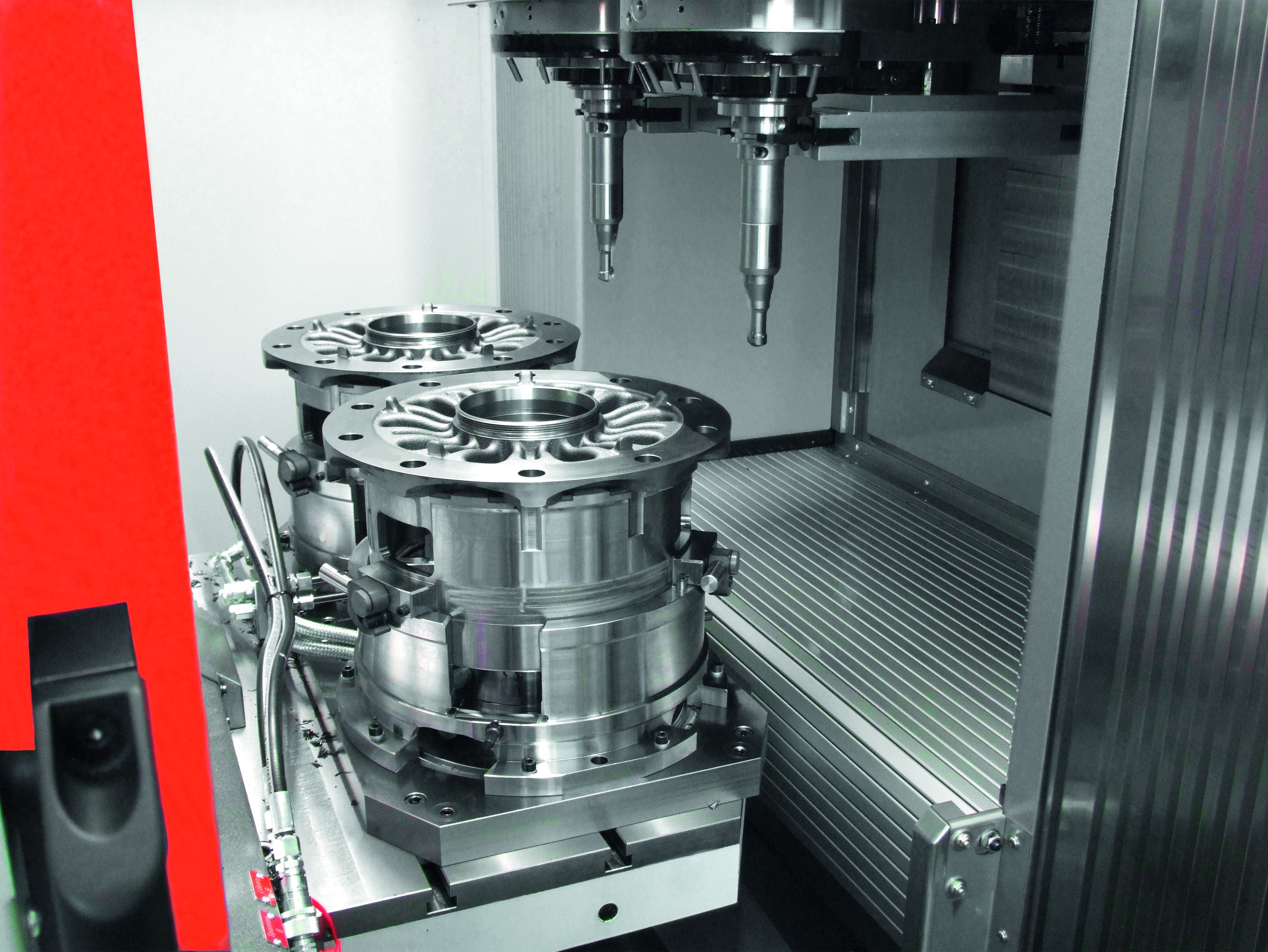

Work area 2: Machining station
