MATEC 30PT | 40PT - Stationary Gantry | Moving Table
5-Axis Gantry Series | 2-Axis Fork Head
Performance Class HSK63 | HSK100
CNC Control Unit: SIEMENS | HEIDENHAIN
Gantry centres with 2-axis fork head are classic standard machines for 5-sided machining without special requirements for maximum precision. Basis are the requirements of DIN ISO 230-2 for the precision of machine tools.
Fork heads are very compact in design and enable certain machining operations from below in the A-axis.

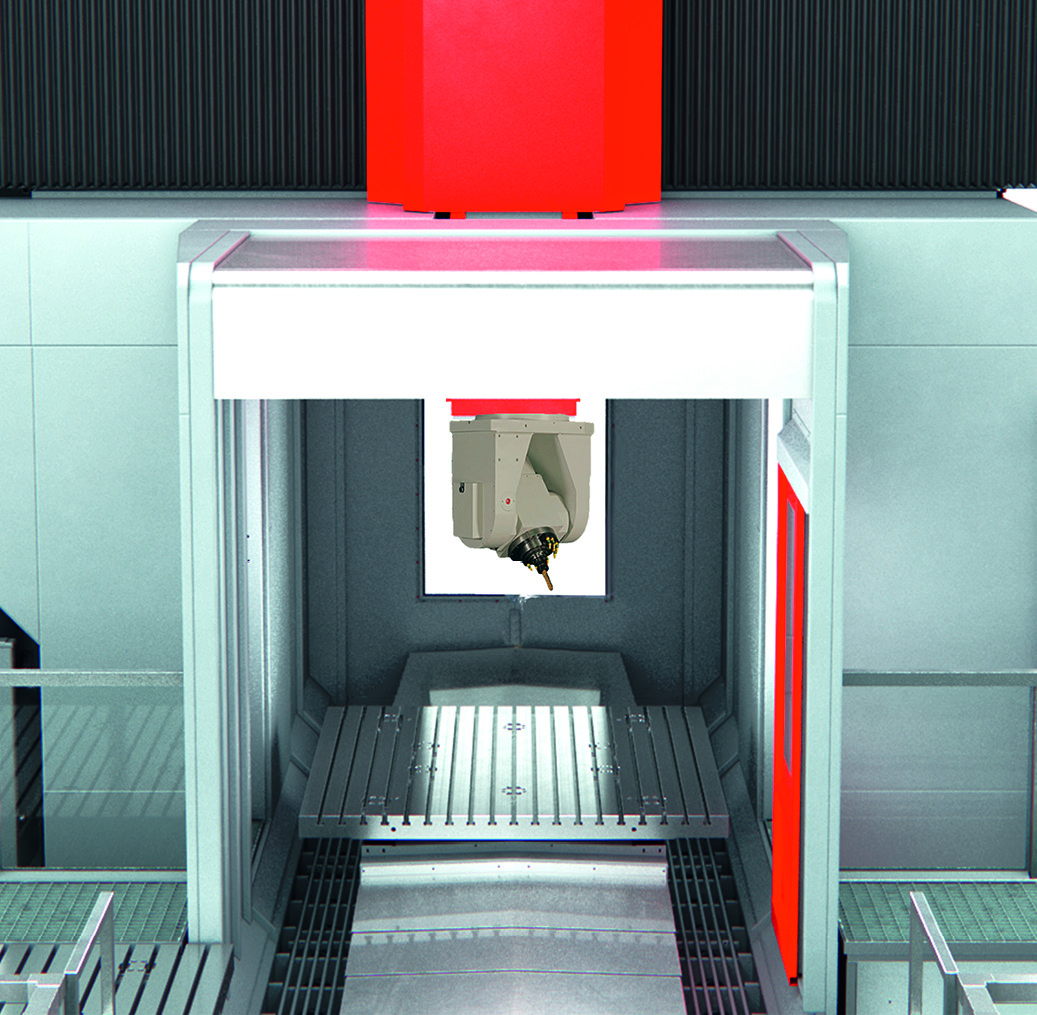

| Work area | |
| X-axis | 3,750 | 4,750 | 5,750 | 6,750 mm |
| Y-axis | 3,400 | 4,400 mm |
| Z-axis | 1,500 | 1,800 | 2,100 mm |
| Clearance height | 1,350 | 1,650 | 2,050 mm |
| Clearance width | 2,320 | 3,320 mm |
| Main spindle | |
| Speed | 10,000 | 15,000 | 20,000 1/min |
| Power max. | 96 kW |
| Torque max. | 690 Nm |
| Tool magazine | |
| Tool places | 40 | 48 | max. 680 pcs. |
| Tool length | 450 mm |
| Tool weight | 10 | 20 kg |
Interchangeable head magazine (option)
Ready to take 4 different machining heads.
Automatic change procedure.
 |
|
| 2-Axis fork head | |
| Swivel radius | 250 mm |
| Rotation angle C-axis | ± 180° |
| Direct measuring system | ± 6" |
| Rotation angle A-axis | ± 105° |
| Direct measuring system | ± 5" |
 |
|
| Clamping table | |
| Length | 2,000 | 3,000 | 4,000 | 5,000 mm |
| Width | 2,000 | 3,000 mm |
| Table load max. | 4,000 kg |
| (depending on table size and drive system) | |
| Feed | rapid traverse | 30 m/min |
| Option: linear drive or toothed rack drive. | |
